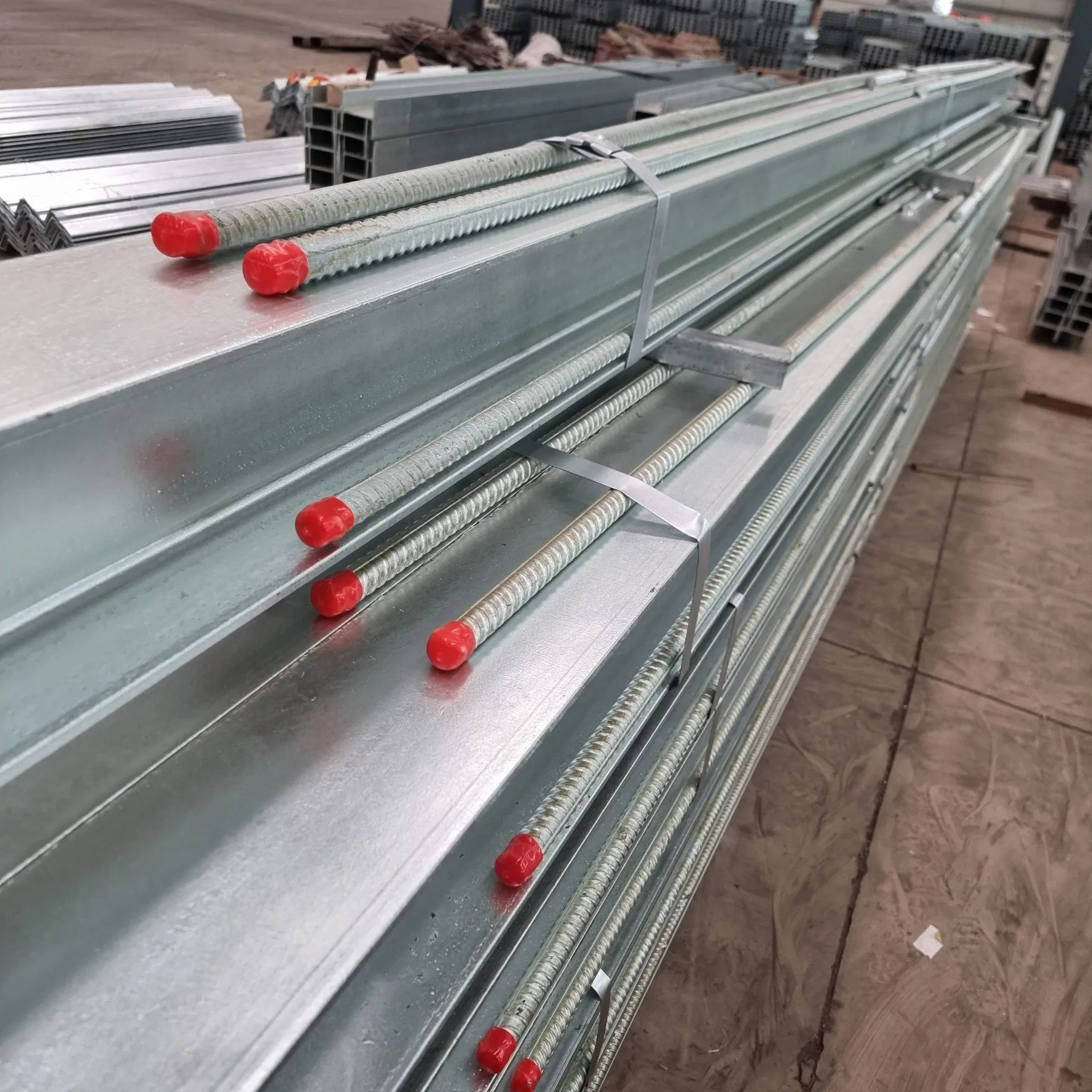

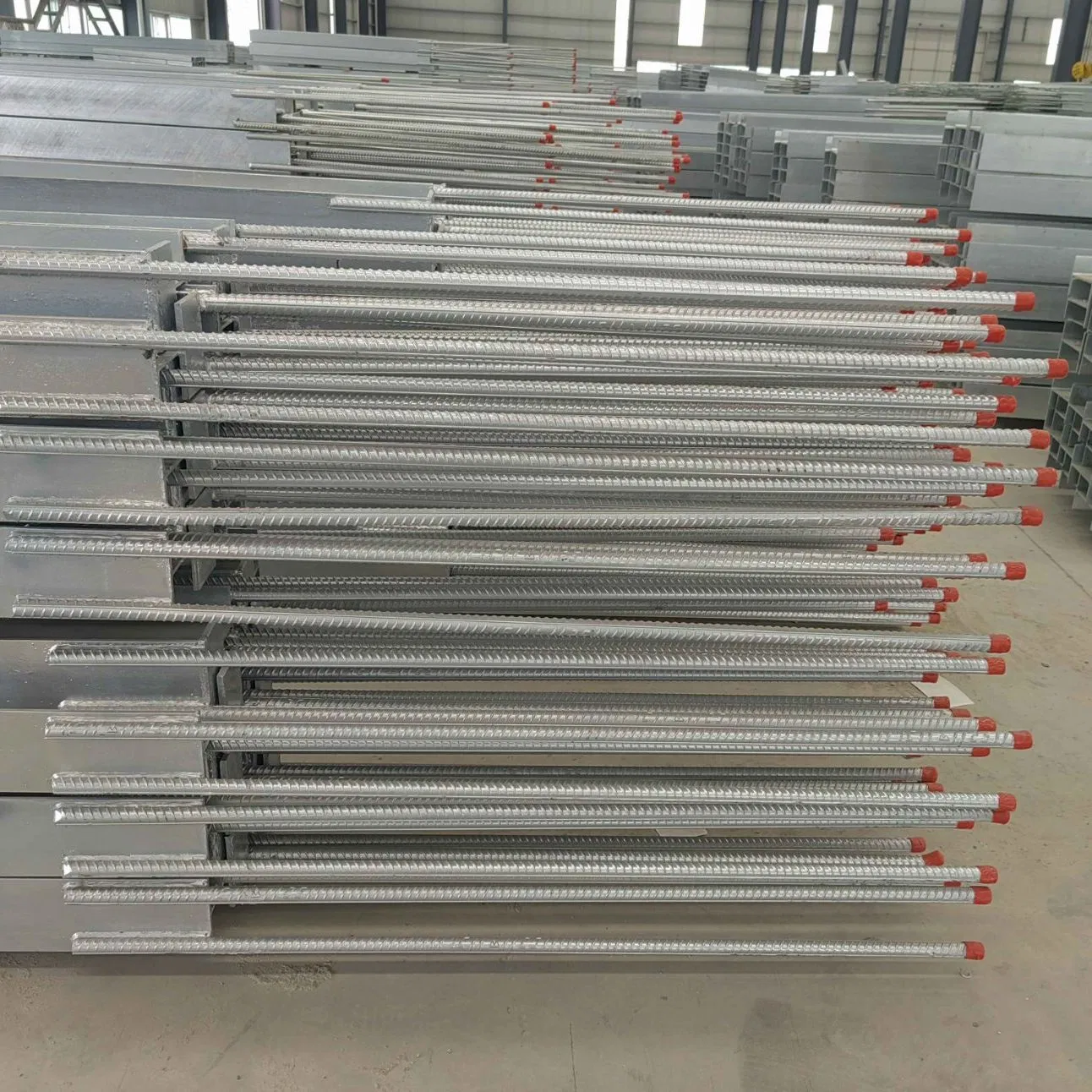

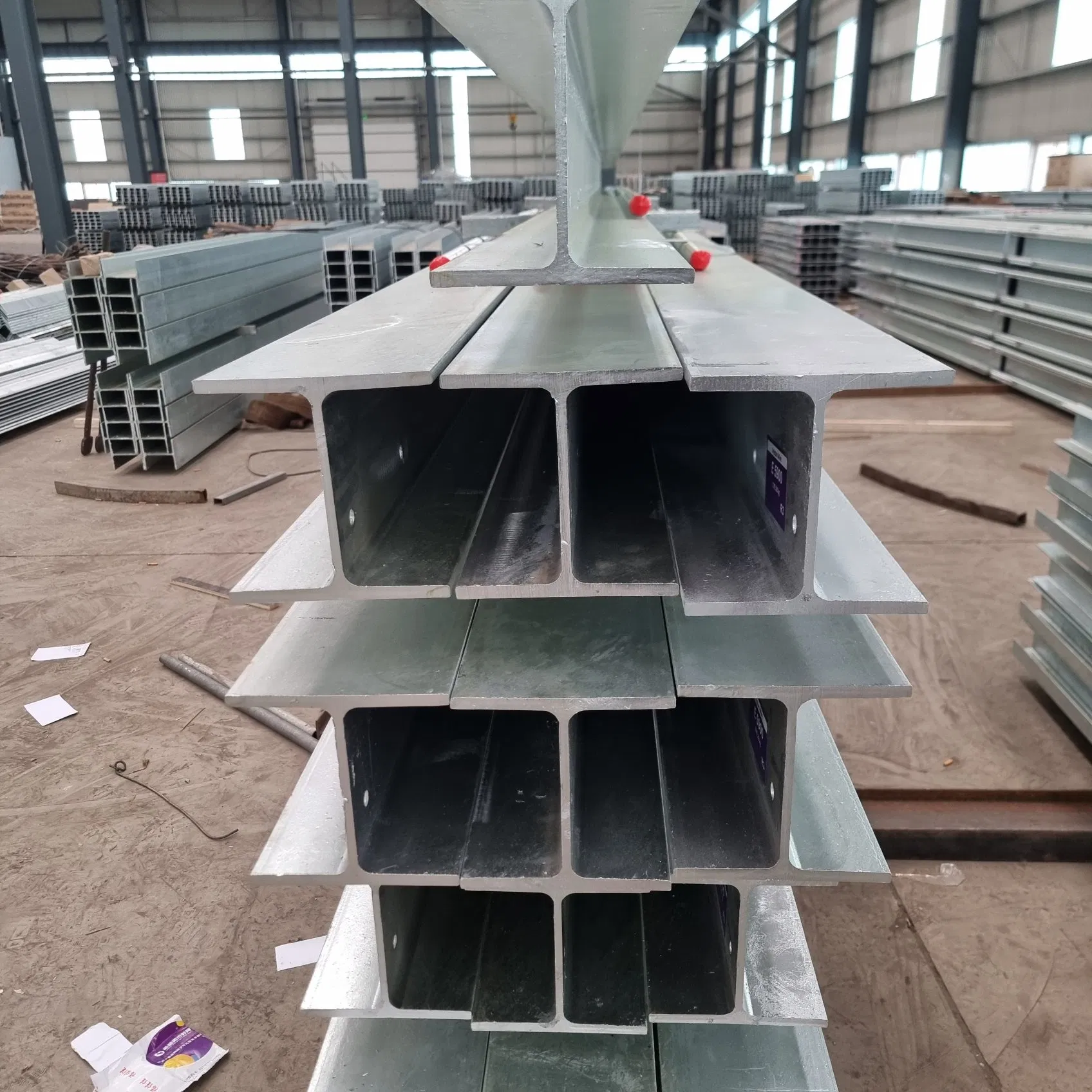

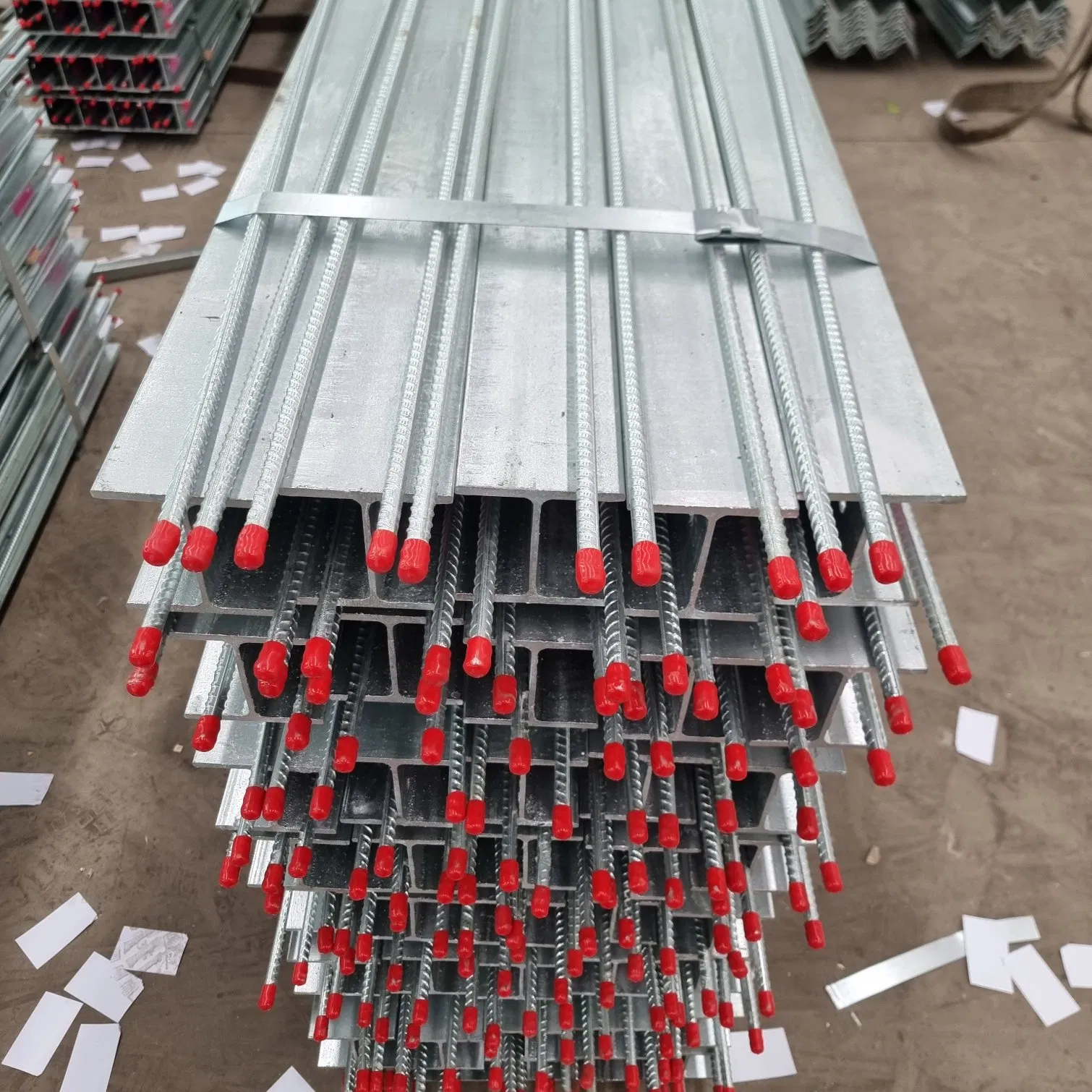

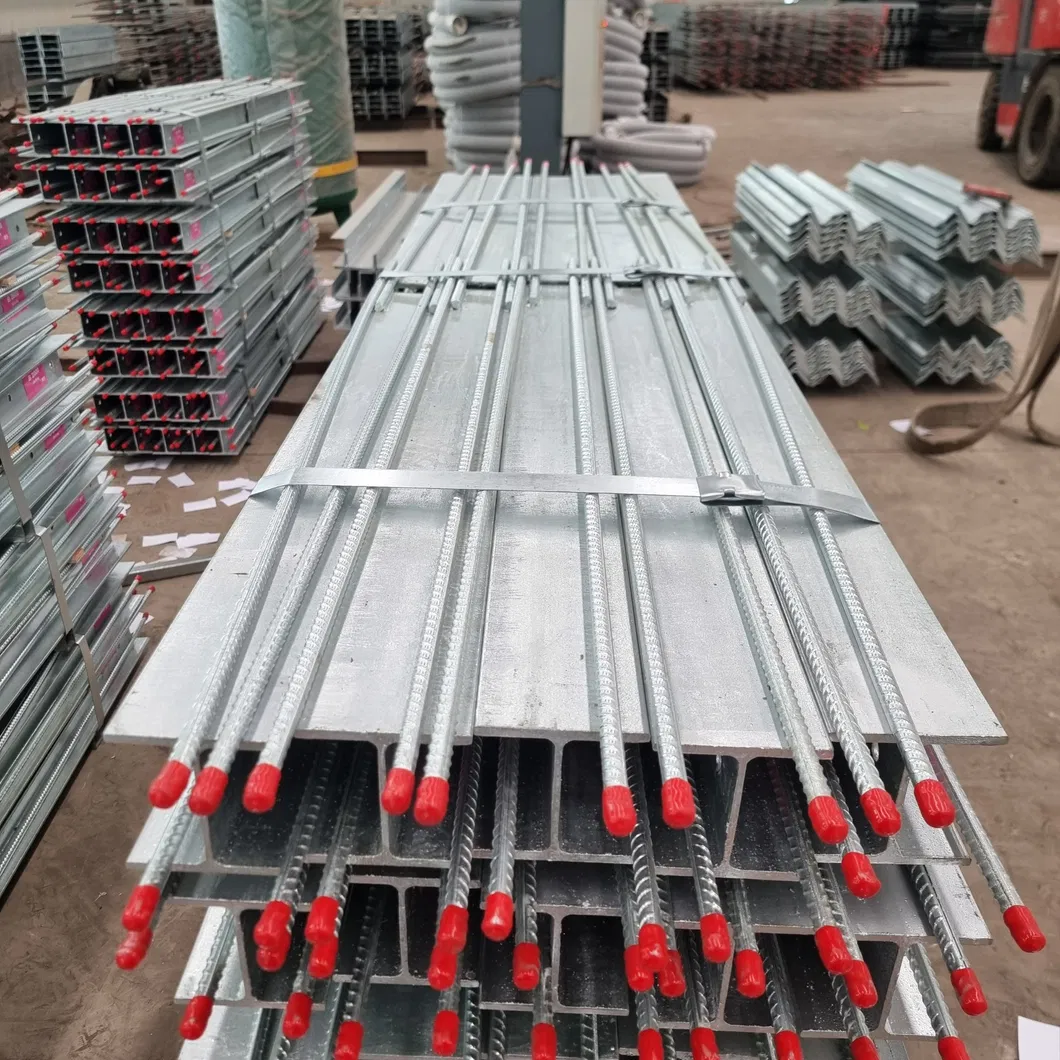

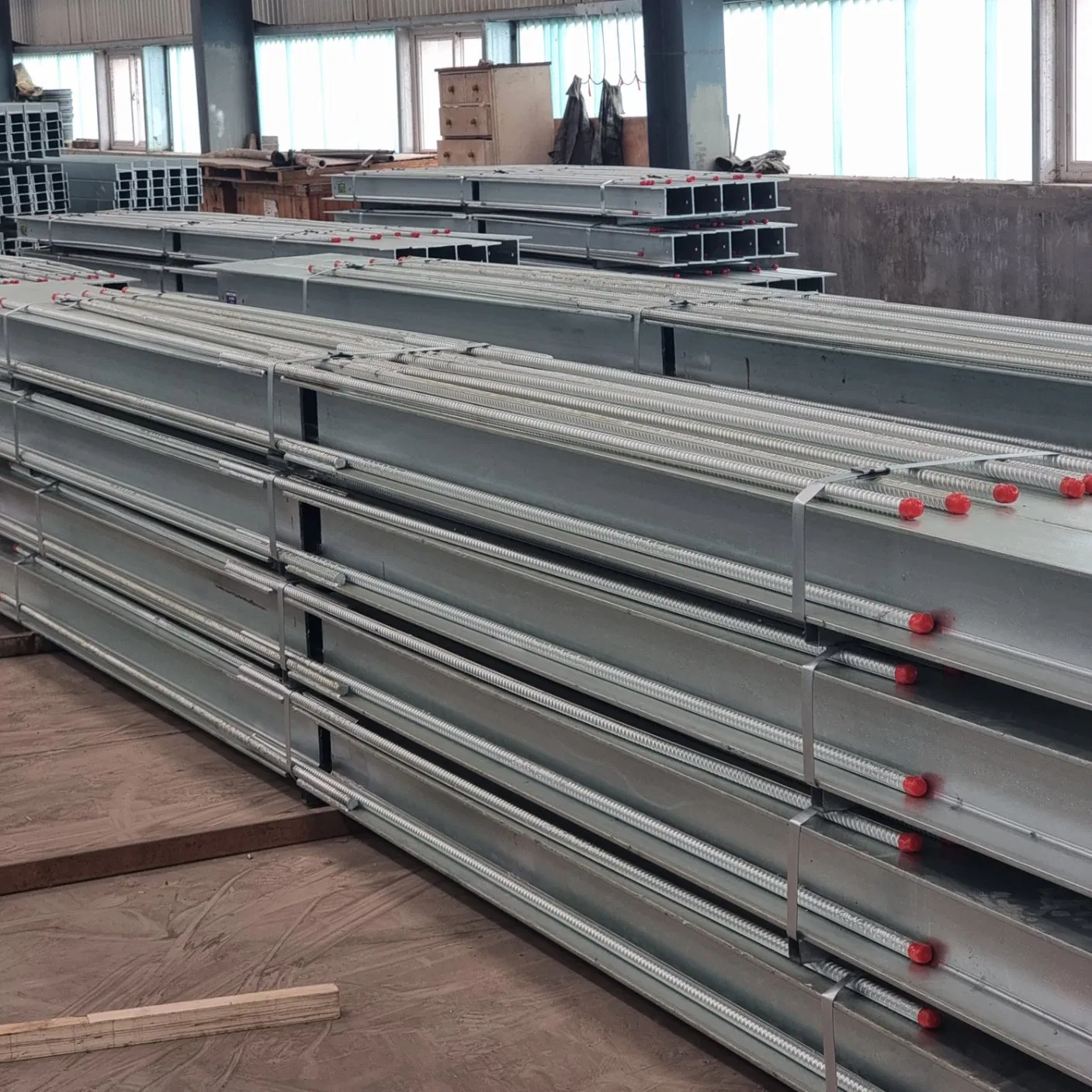

Large quantities of retaining walls are available and can be processed in different sizes according to specific requirements. Please provide your specifications for a rapid quotation.
| Wall Height | H size (mm) | H length (mm) | Rebar Size (mm) | Rebar Length (mm) | Total Length (mm) |
|---|---|---|---|---|---|
| 0.4m | H100*100*6*8 | 750 | / | / | 750 |
| 0.6m | H100*100*6*8 | 800 | 16 | 500 | 1150 |
| 0.8m | H100*100*6*8 | 1100 | 16 | 700 | 1550 |
| 1.0m | H100*100*6*8 | 1300 | 16 | 900 | 1950 |
| 1.2m | H100*100*6*8 | 1500 | 16 | 1100 | 2350 |
| 1.4m | H100*100*6*8 | 1700 | 16 | 1300 | 2750 |
| 1.6m | H100*100*6*8 | 1900 | 16 | 1500 | 3150 |
| 1.8m | H100*100*6*8 | 2100 | 16 | 1700 | 3550 |
| 2.0m | H100*100*6*8 | 2300 | 16 | 1900 | 3950 |
| 2.0m | 150UC23 | 2400 | 16 | 2350 | 4400 |
| 2.2m | 150UC23 | 2600 | 16 | 2550 | 4800 |
| 2.4m | 150UC23 | 2800 | 16 | 2750 | 5200 |
| 2.6m | 150UC23 | 3000 | 16&20 | 2950 | 5600 |
| 3.0m | H150*150*7*10 | 3400 | 20&16 | 3350 | 6400 |
| 3.2m | H200*200*8*12 | 3600 | 16&20 | 3550 | 6800 |
| 3.4m | H200*200*8*12 | 3800 | 16&20 | 3750 | 7200 |
| 3.6m | H200*200*8*12 | 4000 | 16&24 | 3950 | 7600 |
| 4.0m | H250*250*9*14 | 4500 | 16&24 | 4350 | 8500 |
Note: 1. Galvanized coat > 85um (600g/m2) | 2. Other sizes and lengths customizable | 3. Punched holes available upon request.

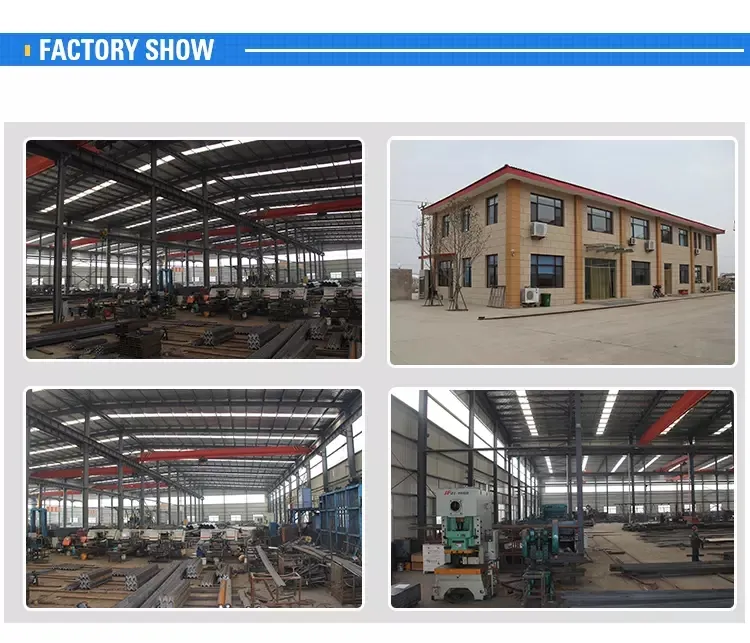

With over ten years of expertise in the steel industry and a loyal customer base exceeding one thousand, we operate as a direct source manufacturer. We guarantee that all costs are direct-to-product without third-party fees.
