| Attribute | Details |
|---|---|
| Model | H20 Timber Beam Formwork |
| Certification | ISO |
| Material | Timber |
| Type | Beam Formwork |
| Feature | Easy Install, Economic |
| Usage | Hotel, Wall and Column Concrete Construction |
| Bending Bearing Moment | 5kN/M |
| Permitted Shearing Force | 11kN |
| HS Code | 8480600000 |
The H20 timber beam formwork system consists of plywood, H20 timber beam, steel waling, flange clamp, and lifting hook. The plywood and the timber beam are connected by self-tapping screws. Steel waler and timber beam are connected with flange clamps; two hooks are arranged symmetrically on both sides of the timber beam.
This system is light in weight and convenient for construction and transportation. The formwork panel is plywood with a smooth surface, providing excellent water absorption and air transmission. It ensures a high-quality concrete finish and superior turnover rates, making it widely applicable for walls, columns, piers, and dams.
| Technical Data | |
|---|---|

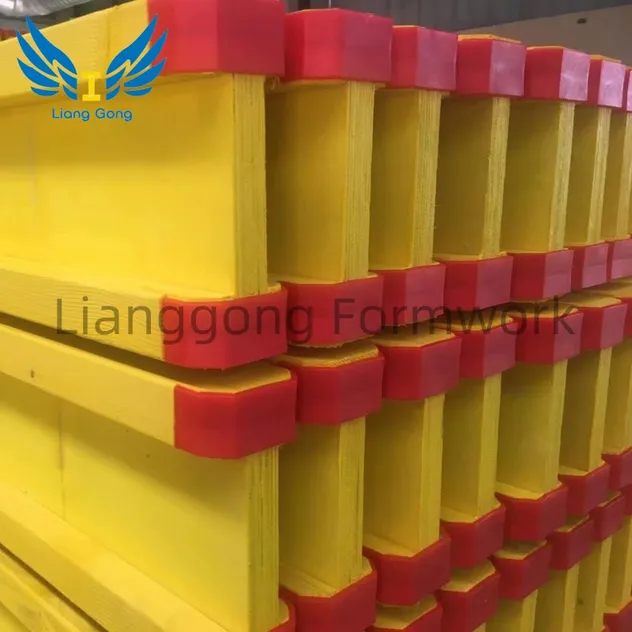

| Product Name | H20 timber beam |
| Length | 200mm |
| Width | 80mm |
| Height | 40mm |
| Thickness | 30mm |
| Weight (average) | 4.8-5.2kg/m |
| Glue | Phenolic, Melamine |
| Application | Slab, Column, Wall formwork etc. |

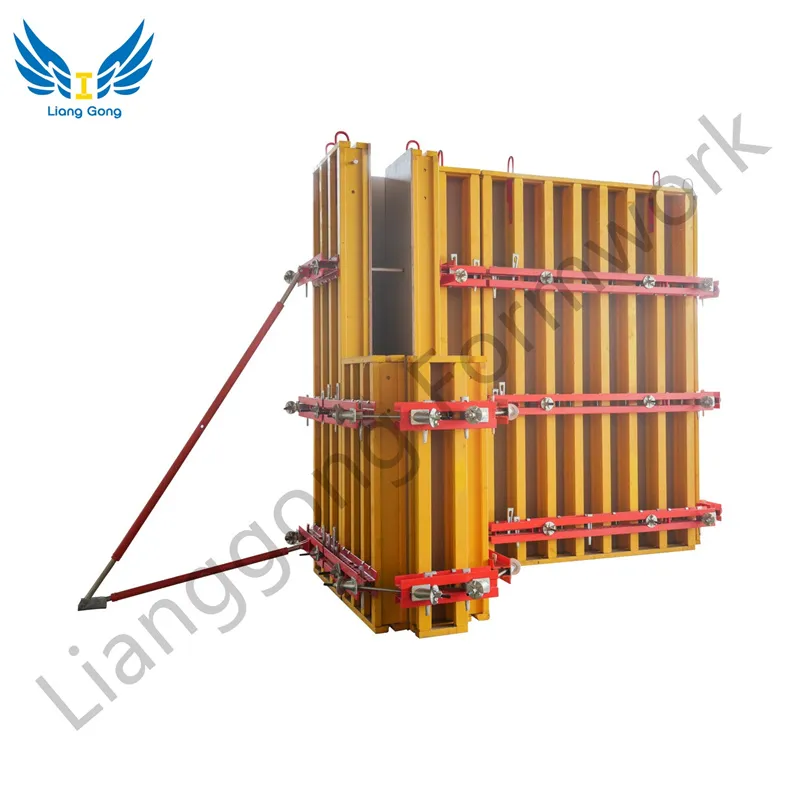

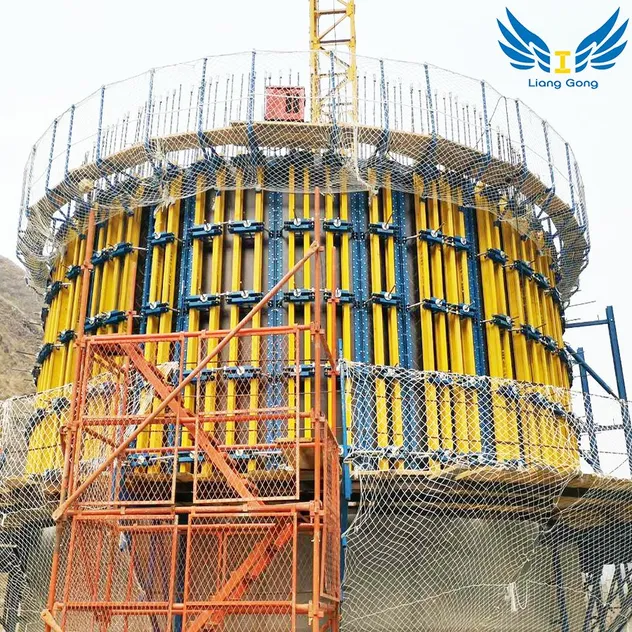

A large-panel reusable formwork system designed for casting concrete walls. Strong and flexible, it is ideal for high-rise buildings, basements, bridge piers, and infrastructure projects.

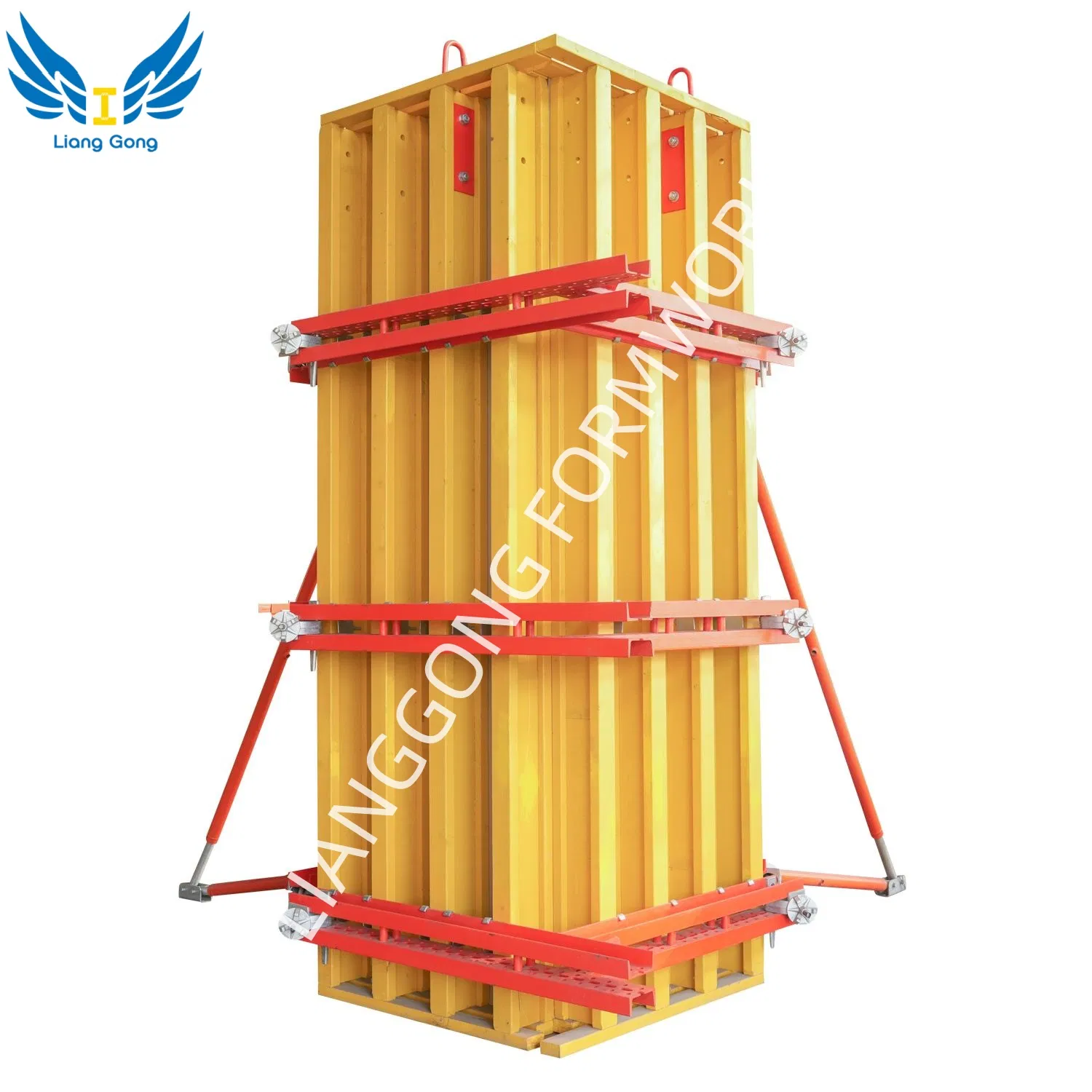

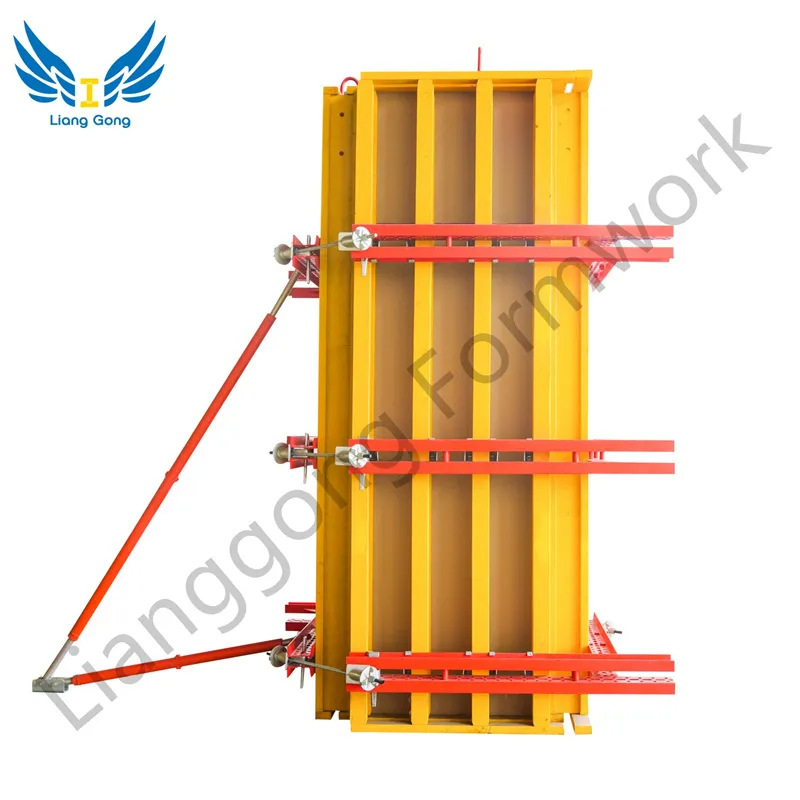

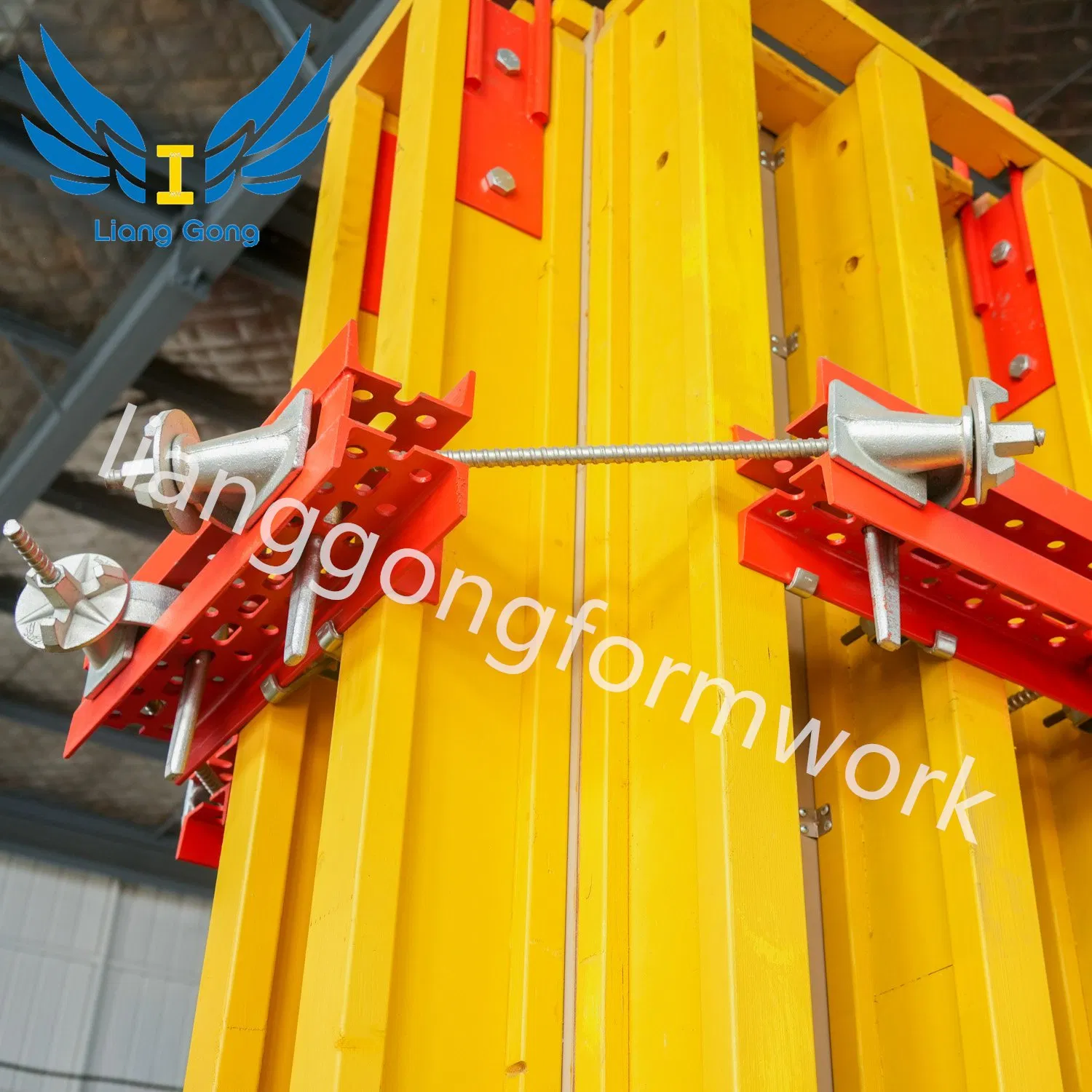

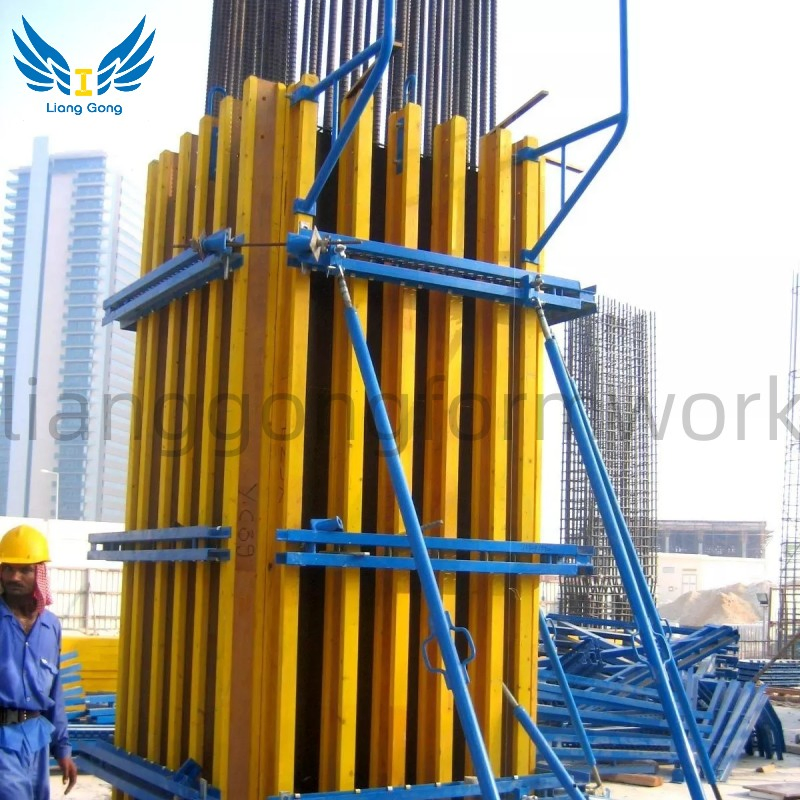

A modular system specifically for square or rectangular columns. It shares a similar structure and connection methodology with the wall formwork system.

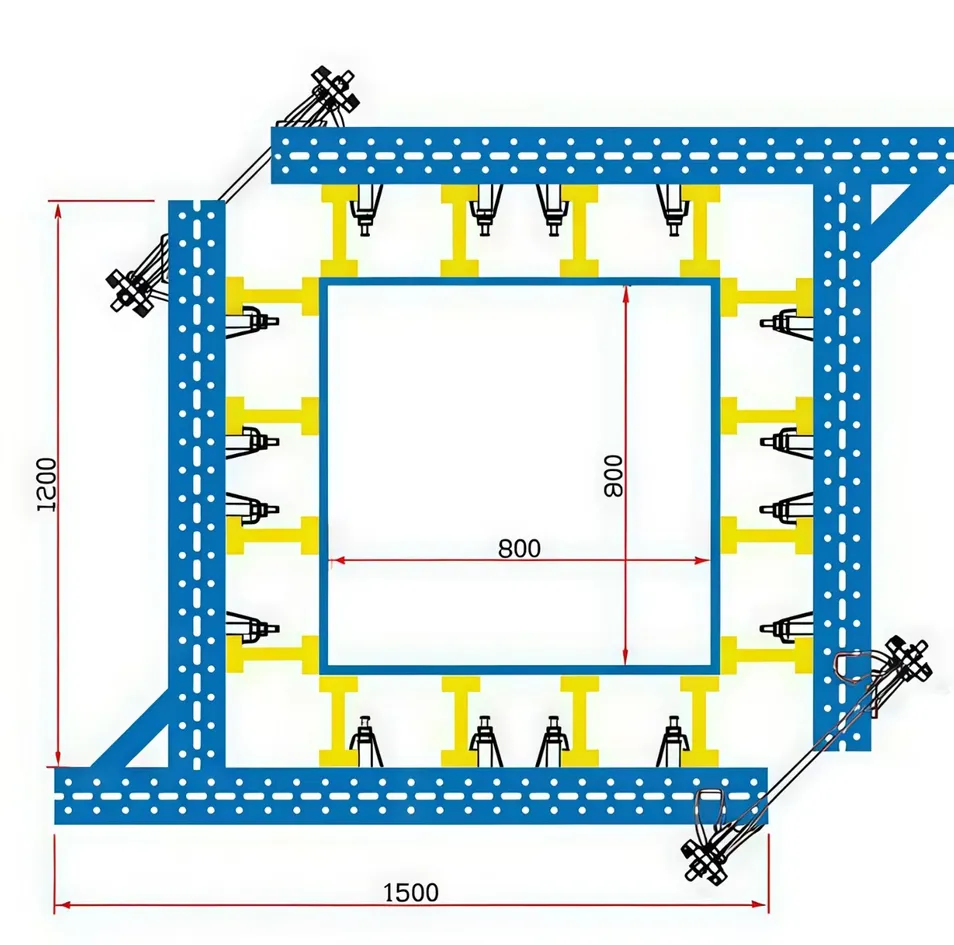

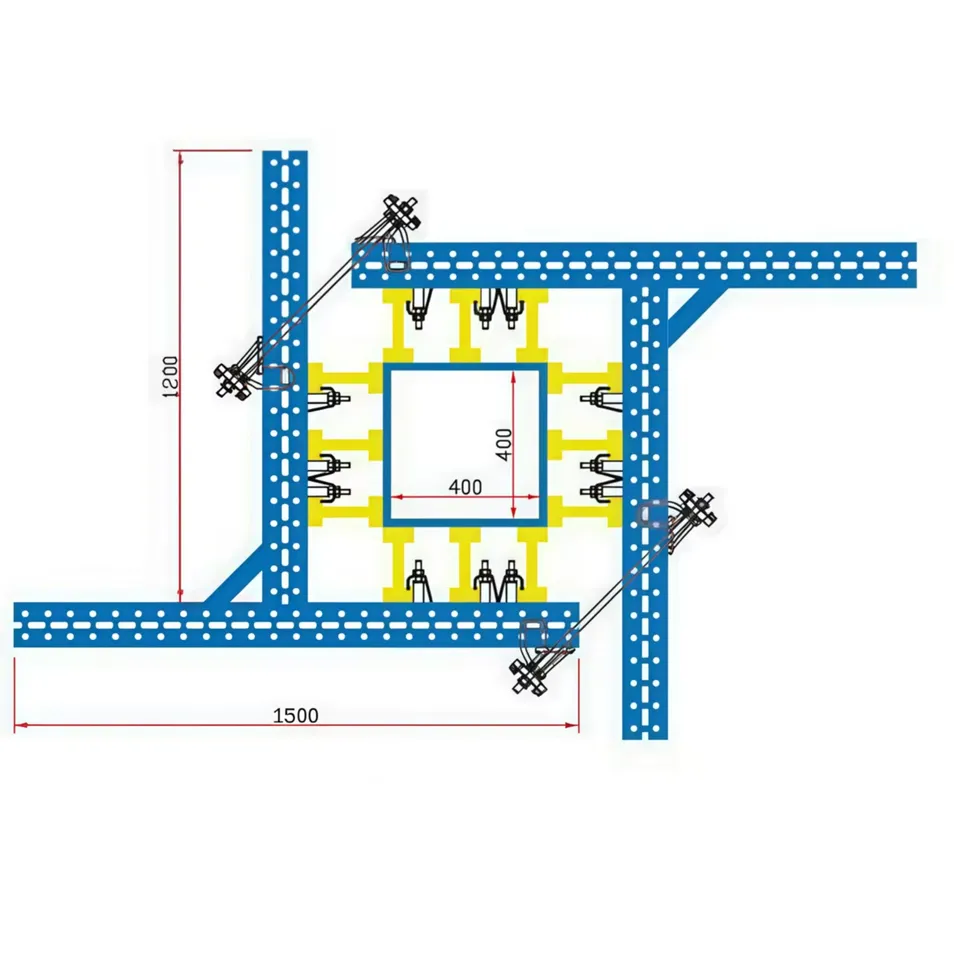

This system enables concrete casting of various square or rectangular columns by adjusting the section area. This is achieved by changing the relative position of the walers.
| Length of Waler (m) | Column Side Length Scope (m) |
|---|---|
| 1.6 and 1.9 | 1.0 - 1.4 |
| 1.6 and 1.3 | 0.6 - 1.0 |
| 1.3 and 0.9 | 0.2 - 0.6 |
Production typically takes 20–30 days for full container orders after down payment. Delivery time varies by destination port.

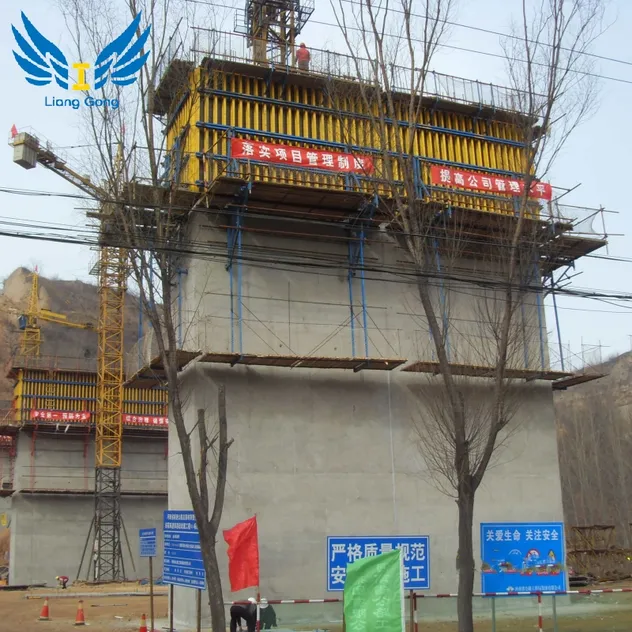

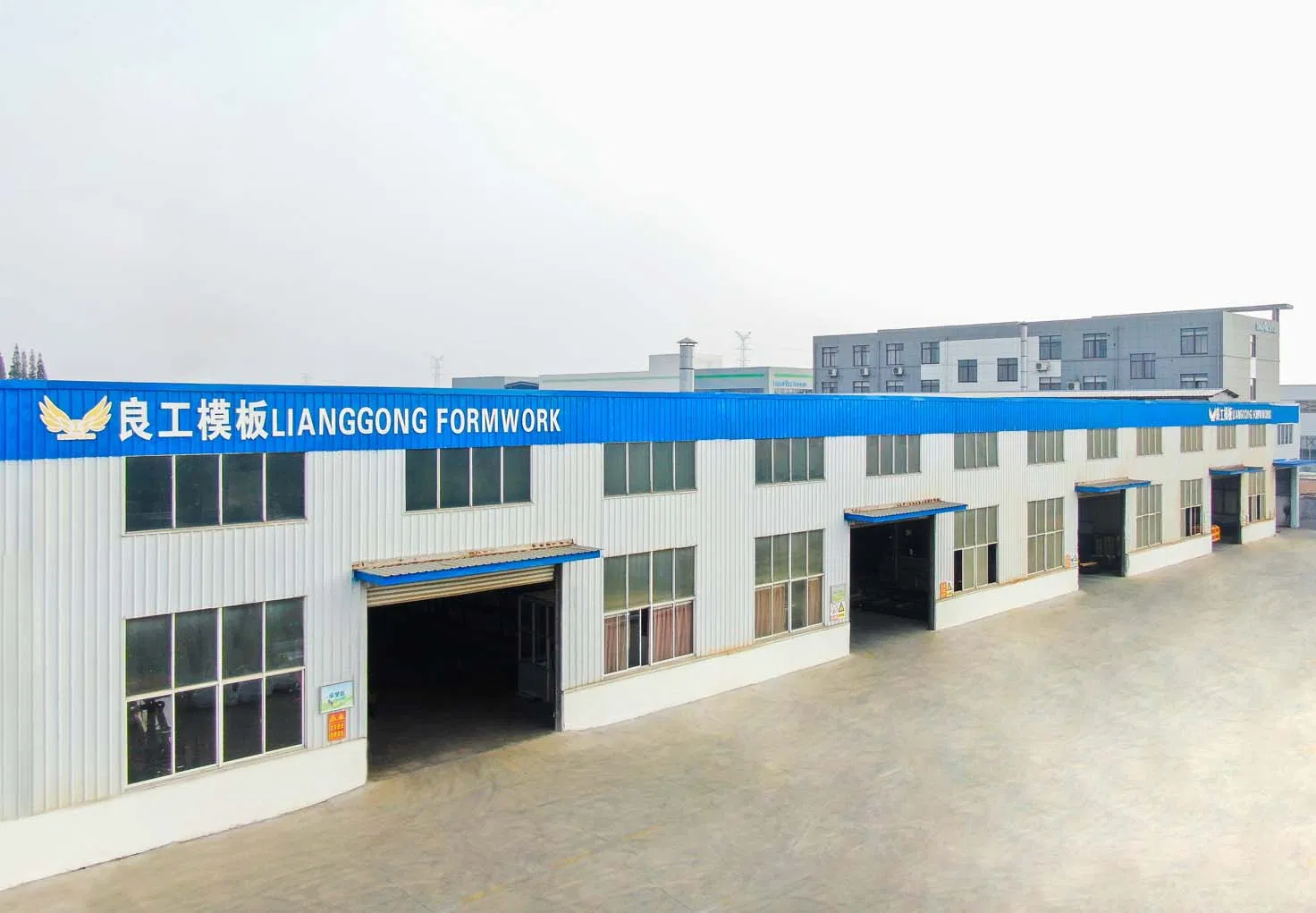

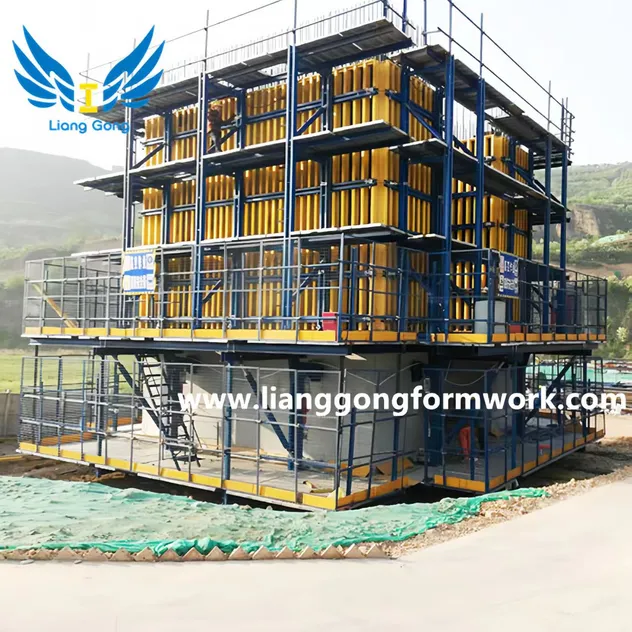

Our company is a leading enterprise specializing in formwork and scaffolding. Since 2010, we have successfully undertaken numerous international projects including bridges, tunnels, power stations, and civil constructions.
